Name: RD-2805 Lightweight NDT Equipment Used In Shipyard Inspection And Weld Inspection
Brand: Hangzhou Huiwei Nondestructive Equipment Co.,Ltd,
SKU: RD-2805TH
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Industrial X Ray Testing RD-2805,x-ray Welding Machine Ndt,X-ray Inspection Systems,NDT Industrial Film Processing Machine,industrial NDT Equipment NDT X Ray Testing Machine

Warranty: 12 Months

Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection

Power Supply: AC220V±10%

Application: Industrial Field

Function: Steel Defect,NDT Inspection Welding

Color: Stainless Steel,Silver Gray,blue And White

Max.penetration: 40mm(A3 STEEL)

Film Type: Any Kinds Of Industrial Film

Voltage: 150-280kv

Exposure Time: 15 Minutes

Name: NDT Industrial X-ray Machine

Tube Current: 5mA

Controller Weight: 12kg

Focus Spot: 1.0*2.4

Generator Weight: 27kg

Basic Infomation

Place of Origin: ZHEJIANG, CHINA

Brand Name: HUIWEI

Certification: ISO 9001, CE

Model Number: RD-2805TH

Payment & Shipping Terms

Packaging Details: Standard export plywood package

Delivery Time: 15working days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 500sets within one month

Gallery

RD-2805 Lightweight NDT Equipment Used In Shipyard Inspection And Weld Inspection

Product Description

RD-2805 Portable Industrial X-ray Flaw Detector | Directional & Panoramic NDT Machine | 45mm Steel Penetration | 26kg Ultra-Light

Main introduction:

The RD-2805 Series Industrial X-ray Flaw Detector is the designated non-destructive testing product for the installation of China Jian'an's first 1,000 MW power generation unit — a testament to its enduring reliability and field-proven performance.

Representing a significant technical breakthrough, the RD-2805 features high-voltage operation and short-duration exposure capabilities. Rigorous performance testing has demonstrated its capacity to capture 10,000 radiographic images within a 30-day period, making it ideal for high-volume inspection projects.

This intelligent X-ray system boasts robust anti-interference capabilities, alongside fully automated control and safety protection functions. Featuring a modular design and air-duct cooling system, it supports continuous operation with exceptional reliability. Compact and lightweight (only 26 kg), it offers powerful penetration as well as superior resistance to vibration and impact.

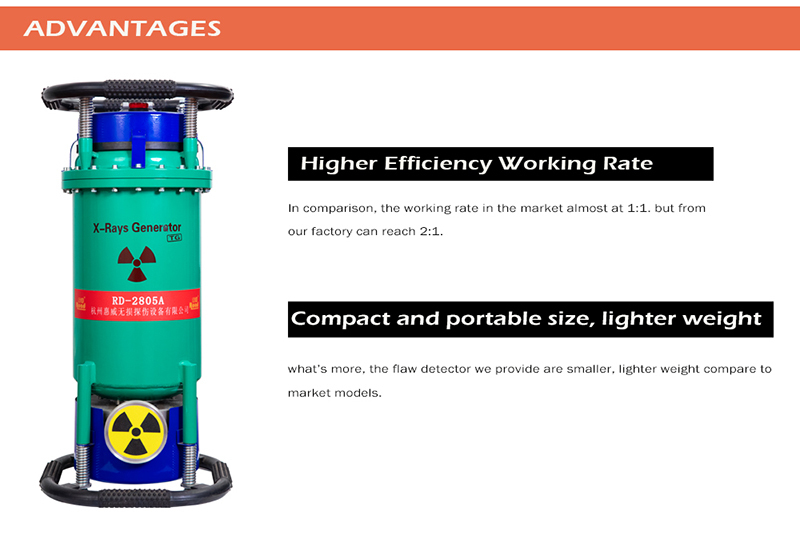

The RD-2805 is ideally suited for radiographic inspection in challenging environments — such as the installation of large-scale power generation units or shipyard operations — particularly in elevated or confined spaces. Its small size, light weight, and portability ensure time- and labor-efficiency, while its high stability and low failure rate guarantee consistent performance. The unit allows for continuous exposure without the need for a 1:1 rest cycle, thereby boosting radiographic inspection efficiency by 50%.

Product features:

🏆 Field-Proven Reliability — Designated NDT equipment for China's first 1,000MW power generation unit installation

⚡ High-Voltage & Fast Exposure — 150-280kV high-voltage operation with short-duration exposure capability

📸 High Productivity — Capable of 10,000 radiographic images within 30 days of continuous operation

🛡️ Strong Anti-Interference — Intelligent system with robust anti-interference capabilities for industrial environments

🔧 Modular Design & Air Cooling — Modular structure with air-duct cooling system for extended continuous operation

💪 Vibration & Impact Resistant — Superior durability for harsh field conditions

🪶 Ultra-Lightweight — Only 26kg generator weight, ideal for elevated/confined space work

📈 50% Efficiency Boost — Continuous exposure without 1:1 rest cycle, significantly improving inspection throughput

🎯 Dual Configuration Options — Directional (RD-2805A) & Circumferential/Panoramic (RD-2805TH) available

Main uses:

RD-2805 Lightweight NDT Equipment Used In Shipyard Inspection And Weld Inspection 0

RD-2805TH the technical parameters

	Project	RD-2805TH
input	Input power	Single-phase 50Hz AC 220± 10% V
input	Power supply capacity	No less than 2.0 KVA
output	X - ray tube voltage	150-280 KVp
	X ray tube current	5mA
	mA Stability degree	± 1%
Ray tube	Focal size	1.0× 2.4
Ray tube	X-ray irradiation range	360°*25°
Ray generator	working pressure Cooling mode Insulation way	0.45MPa ~ 0.5Mpa Anode ground connection radiator Strong wind cold Gas insulation SF6
	Size weight (kg)	Φ280mm´280mm´620mm
	Size weight (kg)	27
Maximum penetration	Thickness steel A3(mm)	40 mm Fe(5 min)
Maximum penetration	condition	focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
	sensitivity	superior 2%
controller	Size weight Circuit	325×270×180 < 9(kg) Automatic control and protection
Environment	working temperature relative humidity Altitude	-30°~ +40° Not more than 85% Not higher 1500m
methods	fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins

Our Strengths

12,000 m² self-owned modern office, R&D, and production facility
Joint R&D center with China Jiliang University
Participated in drafting and revision of multiple national, industry, and group standards
31 authorized patents and software copyrights to date
Packaging & Shipping

Standard export wooden case with shockproof foam lining
Shipping methods: Sea freight, Air freight, Express (DHL/FedEx/UPS)
Lead time: 3-7 working days for standard models
Port of loading: Shanghai / Ningbo, China

FAQ

Q1. Are you a factory or a trading company?
We are a factory with 30 years of experience.

Q2. What's the MOQ ?
(1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
(2)According to customer order, the quantity still can be negotiated and we will product immeditaly if we dont have stock.

Q3. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.

Q4.Which payment can be acceptable ?
We could accept the payment by T/T, Paypal, Western Union,L/C, etc.

Q5. How about the lead time?
If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.

Q6. What certificates will be offered?
CE and ISO are certified for most products.
Always high quality is offered to avoid any defective products. Also, protective packaging is offered to avoid destroy during
delivery.
