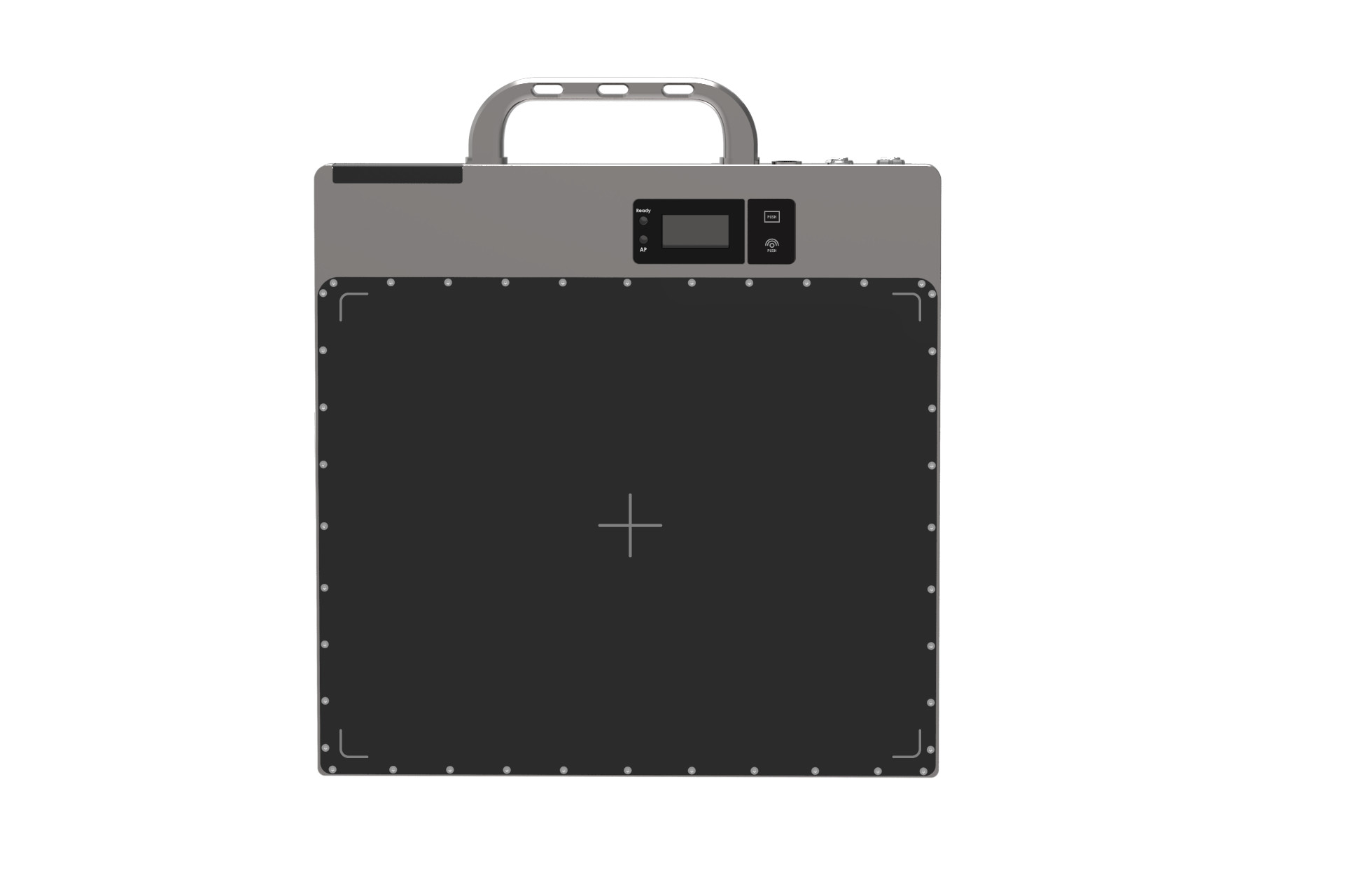

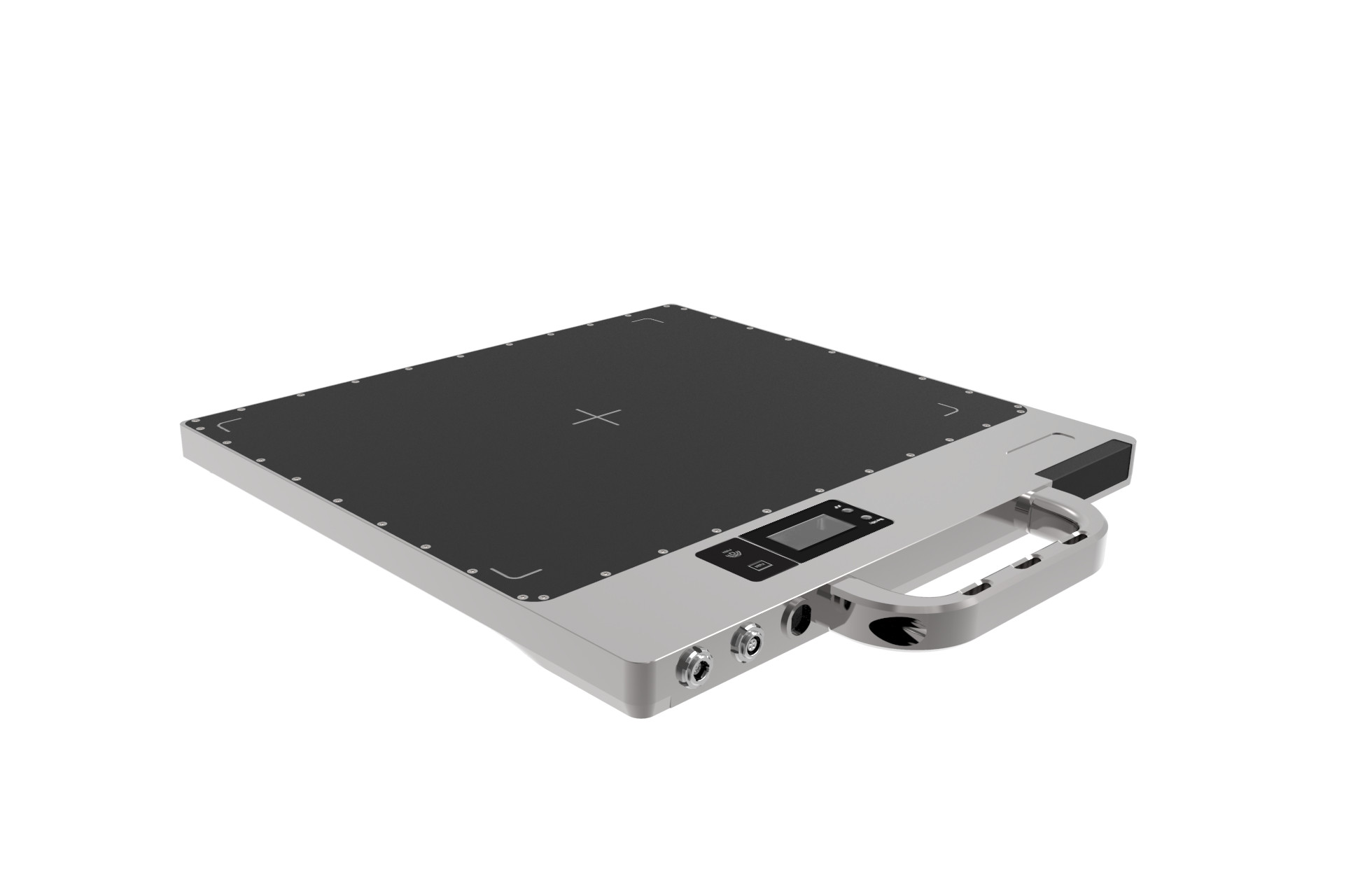

Industrial Inspection Digital Radiography Flat Panel Detector 2548×3048

1 set
MOQ
12000usd/set
Price
Industrial Inspection Digital Radiography Flat Panel Detector 2548×3048
Features Gallery Product Description Request A Quote
Features
Specifications
Pixel Matrix: 2548×3048
Sensor Type: A-Si
Operating Temperature: -10~55℃
Dimensions: 354×350.5×20
Cooling Method: Air Cooling
Pixel Size: 100 μm
Weight: 4.5kg
AD Conversion Bit Number: 16bit
X-ray Energy Range: 40kV-300kV
Protection Level: IP54
Highlight:

IP54 digital radiography flat panel detector

,

2548×3048 digital radiography flat panel detector

,

Industrial dr panel x ray
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: HS-2530W
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

              PRODUCT DESCRIPTION



Industrial Inspection X Ray Flat Panel Detector with High-Efficiency Performance



HS-2530W  Specifications

Sensor type

a-Si

Dimensions

354×350.5×20

Scintillator type

Cesium iodide/Perovskite

Weight

4.5kg

Effective imaging area

254.8x304.8 mm

Operating temperature

-10~55℃

Pixel matrix

2548×3048

Storage temperature

-20~60℃

Pixel size

100 μm

Operating humidity

5~90% RH (non-condensing)

Spatial resolution

5.0LP/mm

Storage humidity

5~95% RH (non-condensing)

AD conversion bit number

16bit

X-ray energy range

40kV-300kV

Image output time

1s

Protection level

IP54

Exposure time

350ms-180s

Battery life

4h





Data interface

Wired: GigE





Service life





5 years

Wireless:802.11 a/g/n

Power consumption

20W

Supply voltage

15VDC







Trigger mode







Soft trigger







Industrial Imaging Performance

Single-wire image quality meter: can identify wire number 13, corresponding to wire diameter 0.2mm

Dual-wire image quality meter: can identify wire pair number D9, corresponding to wire diameter 0.2mm

HS-2530W Battery Specifications

Battery model

HS-BATH55

Output

11.1V--5000mAh

Charging limit voltage

12.6V

Charging limit current

2.5A

Weight

385g

Capacity

55.5Wh

Implementation standard

GB31241-2022

Main introduction:

HS-2530W is a flat panel detector for industrial inspection. It uses 100um a-Si TFT sensor technology and has high resolution and good contrast. The product is designed with industrial standards, durable, waterproof and dustproof level reaches IP54, with high radiation resistance, high environmental adaptability and high reliability. We provide SDK software development kit to support Windows operating system, which is convenient for users to configure parameters and integrate components, perform image correction, acquisition and recognition observation. HS-2530W is suitable for industrial fields such as non-destructive testing of pipeline welds and iron and aluminum castings.



FAQ

Q1. Are you a factory or a trading company?
We are a factory with 50 years of experience.

Q2. What's the MOQ ?
(1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
(2)According to customer order, the quantity still can be negotiated and we will product immeditaly if we dont have stock.

Q3. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.

Q4.Which payment can be acceptable ?
We could accept the payment by T/T, Paypal, Western Union,L/C, etc.

Q5. How about the lead time?
If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.

Q6. What certificates will be offered?
CE and ISO are certified for most products.
Always high quality is offered to avoid any defective products. Also, protective packaging is offered to avoid destroy during
delivery.

Q7. What language is offered?
Pure English for the operation panel, display and manuals.
Installation & operation videos will be provided as a guidance if necessary.
