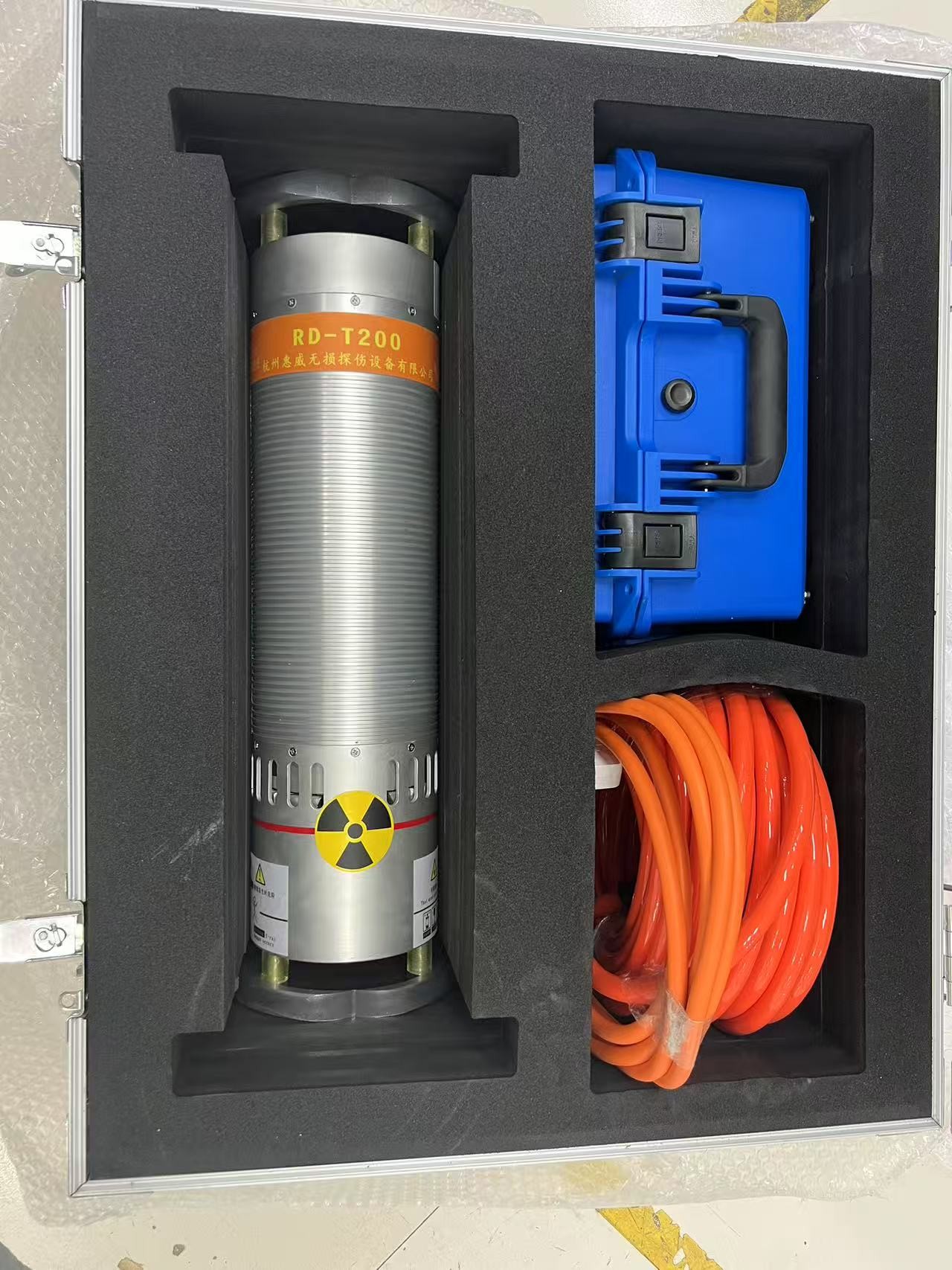

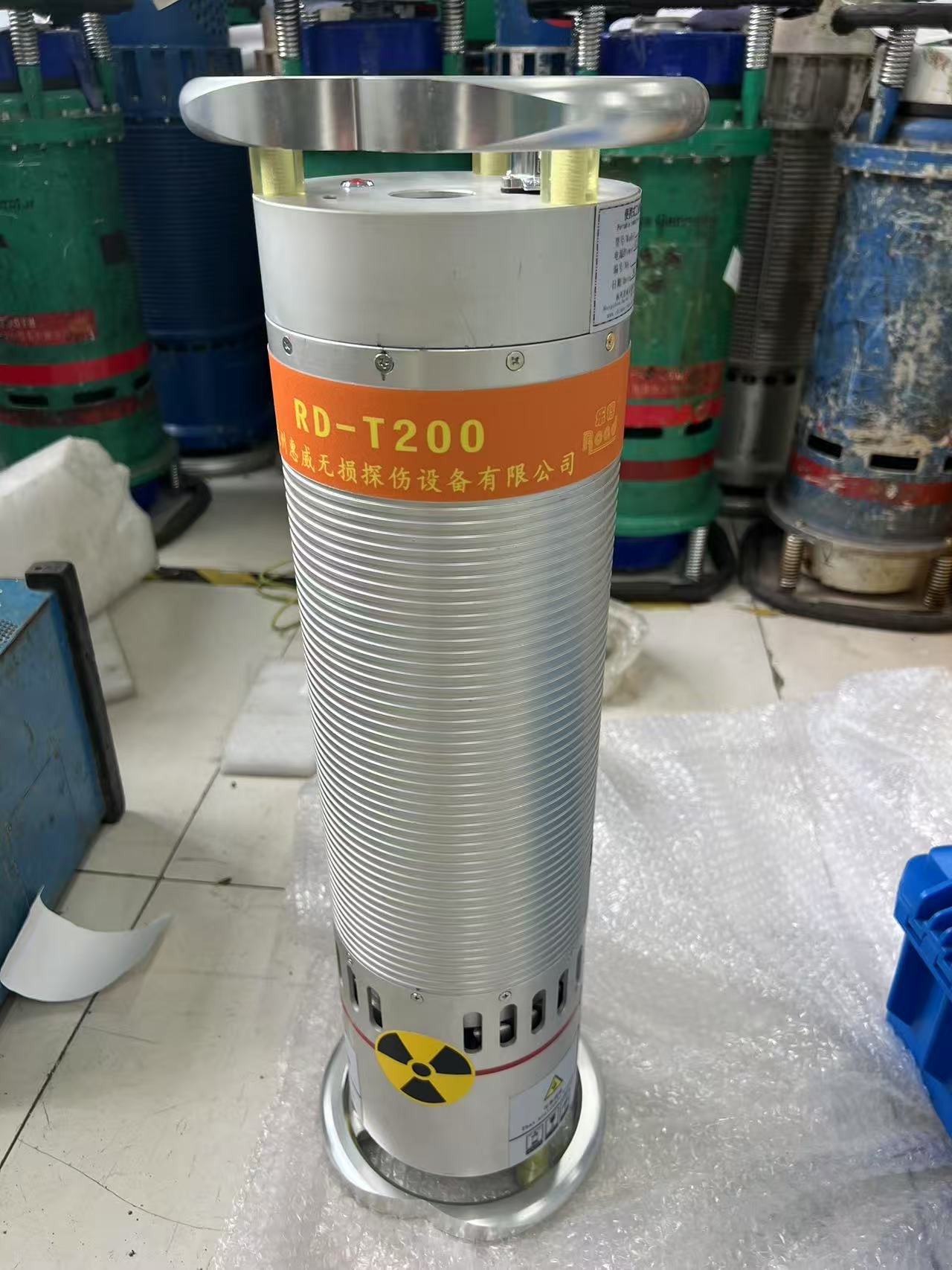

China Factory Top Quality Industrial X Ray For NDT Xray Inspection 250kv Circumference Machine RD-T200H
X Ray NDT Equipment/ NDT Radiographic Testing/NDT Flaw Inspection
Character:
1.Light weight, portable, easy to take and operate.
2.Time delay function protect operator away from radiation
3.X-ray generator have over-temperature protection
4.Radiating time to cooling time 1:1
5. Checking the software and hardware itself after start the machine
6.Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
7.Can adjust exposure parameters with keys ( easy operation.)
8.Convenient for repairing and maintenance
9.Can adjust high voltage slowly for protecting X-ray generator
Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
RD-T200H the technical parameters
|
|
Item
|
RD-T200H
|
|
Input
|
Input power
|
AC220V± 10% 50Hz
|
|
|
Power capacity
|
Not less than 2.0 KVA
|
|
Output
|
X-ray tube voltage
|
100~ 200 KVp
|
|
|
X-ray tube current
|
3mA
|
|
|
mA stability
|
± 1%
|
|
Ray tube
|
Focus size (mm)
|
1.5× 1.5
|
|
|
Radiation angle
|
360°
|
|
Radiation generator
|
Working pressure
Cooling method
Insulation method
|
0.45MPa ~ 0.5Mpa
Anode grounded radiator, strong air cooling
Gas insulation SF6
|
|
|
Dimensions
|
Φ200mm´635mm(Including end rings)
|
|
|
Weight (kg)
|
15
|
|
Maximum penetration
|
Thickness Steel A3 (mm)
|
20(5min)
|
|
|
Conditions
|
Focal length 600mm, Agfa film, double-sided lead foil sensitization, solution temperature 22 degrees, film blackness ≥ 1.5
|
|
|
Sensitivity
|
Better than 2%
|
|
Controller
|
Dimensions
Weight
Circuit
|
350mm×265mm×200mm
< 8(kg)
Automatic control and protection
|
|
Environment
|
Operating temperature
Relative humidity
Altitude
|
-30°~ +40°
No more than 85%
No more than 1500 meters
|
|
Method
|
Fully automatic 1:1 mode of work and rest, the longest continuous exposure time is 5 minutes
|
