Production Introduction:

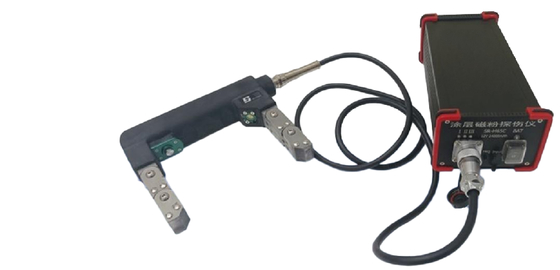

This portable magnetic yoke flaw detector is designed for magnetic particle inspection of coated ferromagnetic materials with a coating thickness of no more than 700μm. It effectively detects surface and near-surface defects with high sensitivity. The device's power supply includes a replaceable battery, effectively extending inspection time. The device consists of a magnetic yoke and a power supply, connected by a cable at the end of the yoke.
The electromagnetic yoke operates in AC variable frequency mode, with seven adjustable frequency settings for optimal sensitivity. The yoke offers strong lifting force and high sensitivity. The yoke is molded with a rubberized, one-piece seal, effectively preventing liquid intrusion and damage. The battery is integrated into the power supply, providing excellent overall waterproofing, even against small amounts of non-conductive liquids.
The yoke supports both white light and UV light illumination, which can be easily switched during use. The device is equipped with overvoltage, overcurrent, overtemperature, and short-circuit protection to prevent damage in critical situations. The battery utilizes highly safe polymer batteries, and the battery protection circuit is well-designed, ensuring excellent protection and reliability.

The equipment is also equipped with a coating thickness gauge to verify on-site coating thickness meets magnetic particle inspection requirements.

Functional features::

 The device supports multiple operating modes, including AC, DC permanent magnet, and coating, offering multiple functions in one device. The coating mode allows for continuous switching between different frequency levels to accommodate coatings of varying thicknesses.
 It supports magnetic particle inspection of ferromagnetic materials and welds with coating thicknesses ≤ 700μm.
 The device is powered by an internal battery, eliminating the need for on-site power during inspection.
 It has a strong lifting capacity of up to 12kg and high detection sensitivity.
 The power supply's internal circuitry is protected against overcurrent, overvoltage, overtemperature, recoil, and battery short circuits, while the external plastic housing protects the power supply from drops.
 It automatically shuts off after prolonged magnetization, automatically shutting off the power supply if magnetization exceeds 15 seconds to prevent damage to the yoke coil.
 It comes with a built-in high-brightness white LED and UV lamp. White light and dual-lamp versions are available to meet customer needs. Lighting version;
 Internal battery protection, battery power-off protection in the event of an external abnormality, which can be reactivated by connecting an adapter;
 The entire device is well sealed, including the power switch, which is protected by a protective cover to prevent dust and liquid infiltration;
 The magnetic poles are coated with TPU, a corrosion-resistant soft rubber covering the metal surface, providing a good seal and protecting the yoke from drops and impact damage, thereby extending the life of the magnetic poles;
 Highly safe polymer batteries are flameproof and explosion-proof, ensuring battery safety during use;
 The magnetic pole joints are made of multi-layer mirror-finished silicon steel to prevent rust;
 Long operating time: approximately 16 hours of normal operation on a full charge;
 Integrated cable design with a metal support at the rear for strong tensile strength up to 40 kg
