Digital Ultrasonic Flaw Detector for Weld Testing 0.5-20MHz

1SET
MOQ
10000-15000USD/SET
Price
Digital Ultrasonic Flaw Detector for Weld Testing 0.5-20MHz
Features Gallery Product Description Chat Now
Features
Specifications
Operating Frequency: 0.5～20MHz；
Sound Speed Range: 1000～20000m/s；
Ambient Temperature: （-10～50）℃
Relative Humidity: 20%～95%（RH）
SIZE: 222×167×50mm
WEIGHT: 1.2KG
Display: 800×480 Pixel High Brightness Display Screen
Highlight:

ultrasonic flaw detector for welds

,

digital weld testing equipment

,

0.5-20MHz ultrasonic flaw detector
Basic Infomation
Place of Origin: ZHEJIANG
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: HW-UA80
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 15WORKING DAYS
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500SET WITHIN ONE MONTH
Product Description

Hot Sell Enhanced Digital Ultrasonic Test Digital Ultrasonic Flaw Detector for Weld Testing Ultrasonic NDT Equipment

HW-UA80 digital ultrasonic flaw detector is a non-destructive testing equipment specially designed for steel metal structure welds, steel plates, forgings, castings, with advanced technology and process, small size, light weight, powerful functions and easy operation.

Functional features

◆Powerful wizard software for easy operation
◆Automatic calibration design makes testing more convenient
◆High-speed data processing capabilities for smoother waveform display
◆Simple display interface design for a more user-friendly interface
◆Built-in domestic and international testing standards, AWS D1.1/D1.5 automatic rating

Technical parameter

Operating frequency
0.5-20 MHz
Dynamic range
≥39dB
Total weight
Approximately 1.2 kg (including battery)
Detection range
0-25,000 mm steel longitudinal wave
Total gain
110dB(0.1/0.5/1/2/6dB)
Dimensions (mm)
L 222 x W 167 x H 50
Sound velocity range
1,000-20,000 m/s
Longitudinal wave resolution
≥30dB(2.5Z20N)
Attenuator accuracy
< ±1dB/12dB
Probe delay
0-199.999 µs
Transmitted pulse voltage
350V
Instrument memory
8GB
Vertical linearity error
≤2.5%
Horizontal linearity error
≤0.1%
Probe jack
BNC
Adjustable damping
50-400 Ω
Sampling frequency
100MHz
Relative humidity
20% to 95% (RH)
Sensitivity margin
≥63 dB (200 mm deep φ2 flat-bottom hole)
Echo display mode
Full-wave, positive/negative half-detection, and RF display
Ambient temperature
(-10 to 50°C)
Digital suppression
(0-80)% does not affect linearity or gain
Detection mode
Single/dual-element mode
Charger
220 ±10% V, 50 ±5% Hz
Data storage
Stores over 1,000 probe setup files and approximately 2 hours of dynamic echo recording

Display
5.7-inch, 640×480 pixel, high-brightness display, color display, adjustable brightness
Power supply performance
Powered by two 7.4V lithium batteries; each battery provides at least 8 hours of continuous operation

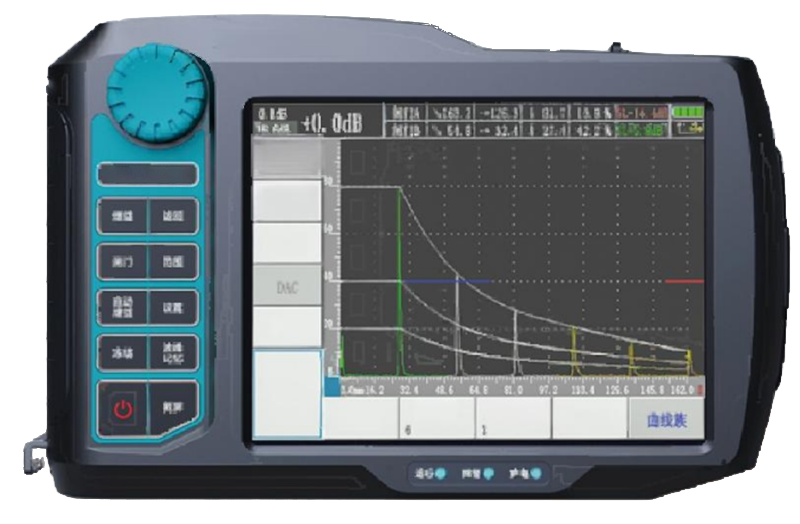

Digital Ultrasonic Flaw Detector for Weld Testing 0.5-20MHz 0
