Densitometers Digital Black and White Industrial X-ray Film Densitometer

Densitometers Digital Black and White Industrial X-ray Film Densitometer

Features

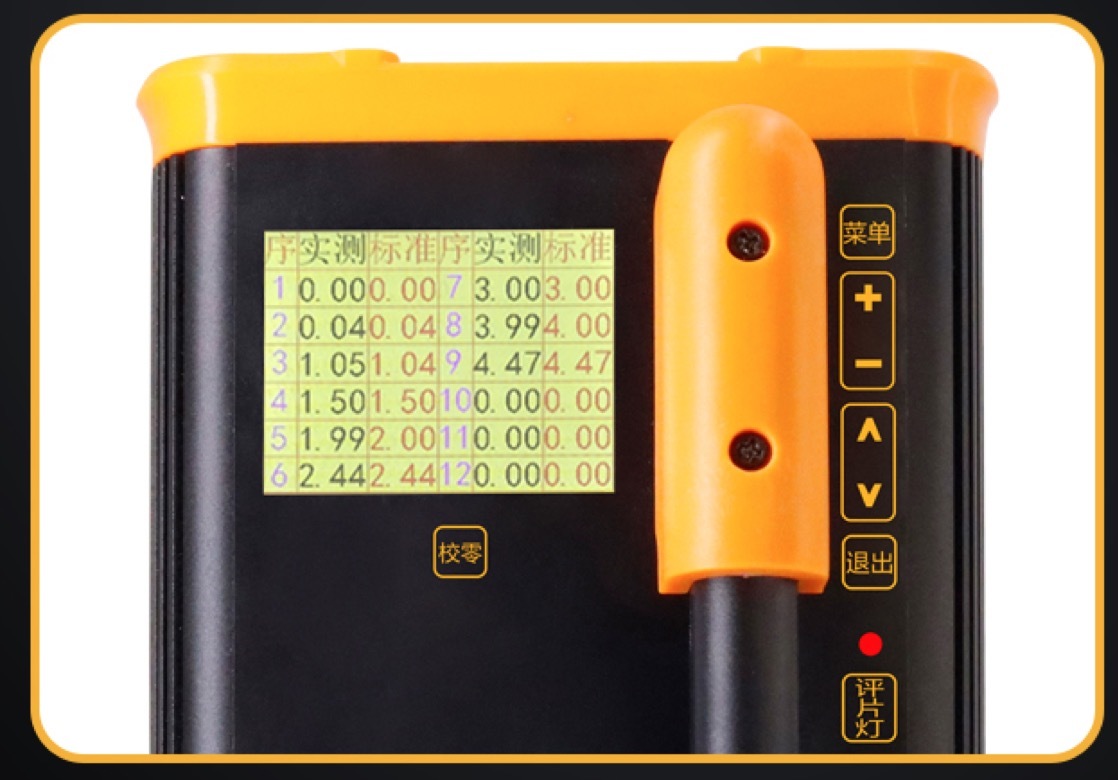

1. The instrument features a TFT color LCD display;

2. The instrument has a built-in calibration function, allowing it to match density films of different standards;

3. The instrument utilizes single-chip digital microprocessor technology, overcoming the drawbacks of traditional circuits, which struggled to accurately read density values and required cumbersome calibration.

4. It utilizes a highly stable light source and high-precision photoelectric sensor, with analog-to-digital conversion and analysis performed by the single-chip microcomputer, ensuring stable readings.

5. It has a built-in film evaluation light, capable of measuring and observing films with a density of 3.5D or less, and features one-touch on/off and infinitely variable dimming.

6. The instrument's unique design makes operation more user-friendly. With its compact size, light weight, portability, high accuracy, and excellent stability, it is widely applicable in various industries, including non-destructive testing and medical treatment. It is an ideal instrument for quality analysis of X-ray films used in pressure vessels, ship hulls, chemical engineering, bridges, and hospitals.

Technical Parameters
1. Display mode: 2.4-inch TFT color LCD screen;
2. Measuring range:
(1) HW-586S: D=0.00-4.50;
(2) HW-586S+: D=0.00-5.00;
3. Sampling time: 0.8s;
4. Aperture diameter: 2mm;
5. Uncertainty: 0.00-3.99D≤0.02D, 4.00D-5.00D≤0.04D;
6. Reading stability: ±0.02;
7. The instrument has a built-in calibration function that can correct the measured value. Make the measurement value more accurate:

8. Film evaluation lamp:

(1) Brightness: 100000 Lux (30000 cd/㎡);

(2) Observation blackness: ≤3.5D;

(3) Window size: 92mm*68mm;

9. Power supply specifications: AC 220V (±10%) 50Hz;

10. Power consumption of the whole machine: 12W;

11. Working environment: Temperature: 0℃～40℃, relative humidity ≤85%;

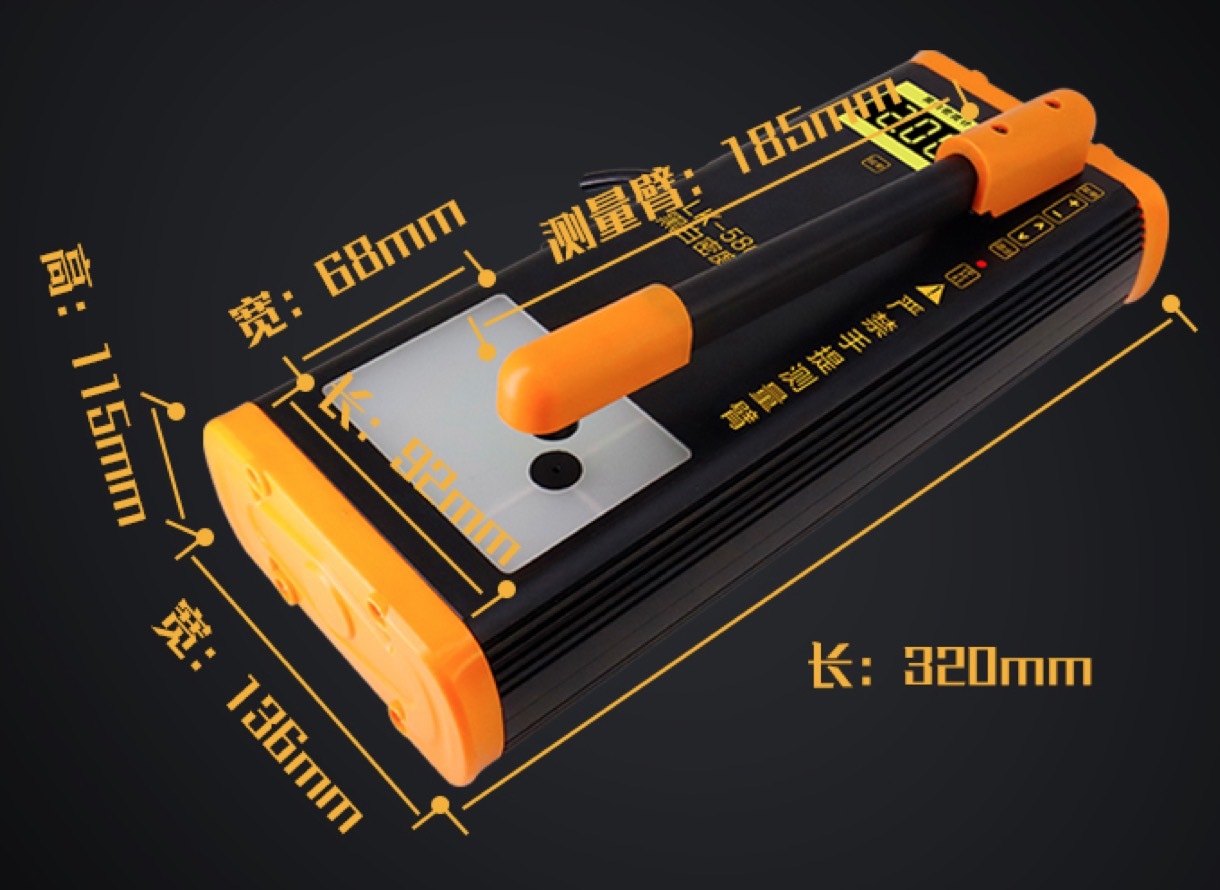

12. External dimensions: 320mm*136mm*115mm;

13. Weight of the whole machine: 1.5kg.

Configuration List
1. Main unit (with power cord) (1 unit);

2. Fuses (2A) (2 units);

3. Operation manual, certificate of conformity, and warranty card (1 unit);

4. Special instrument case (1 unit).
