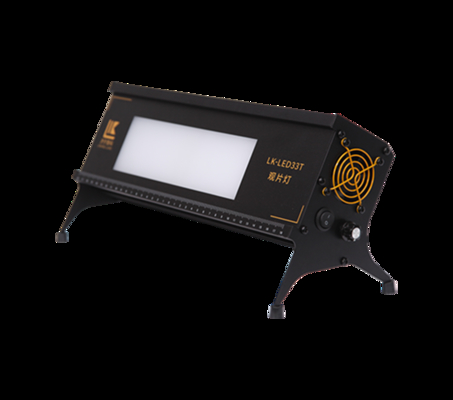

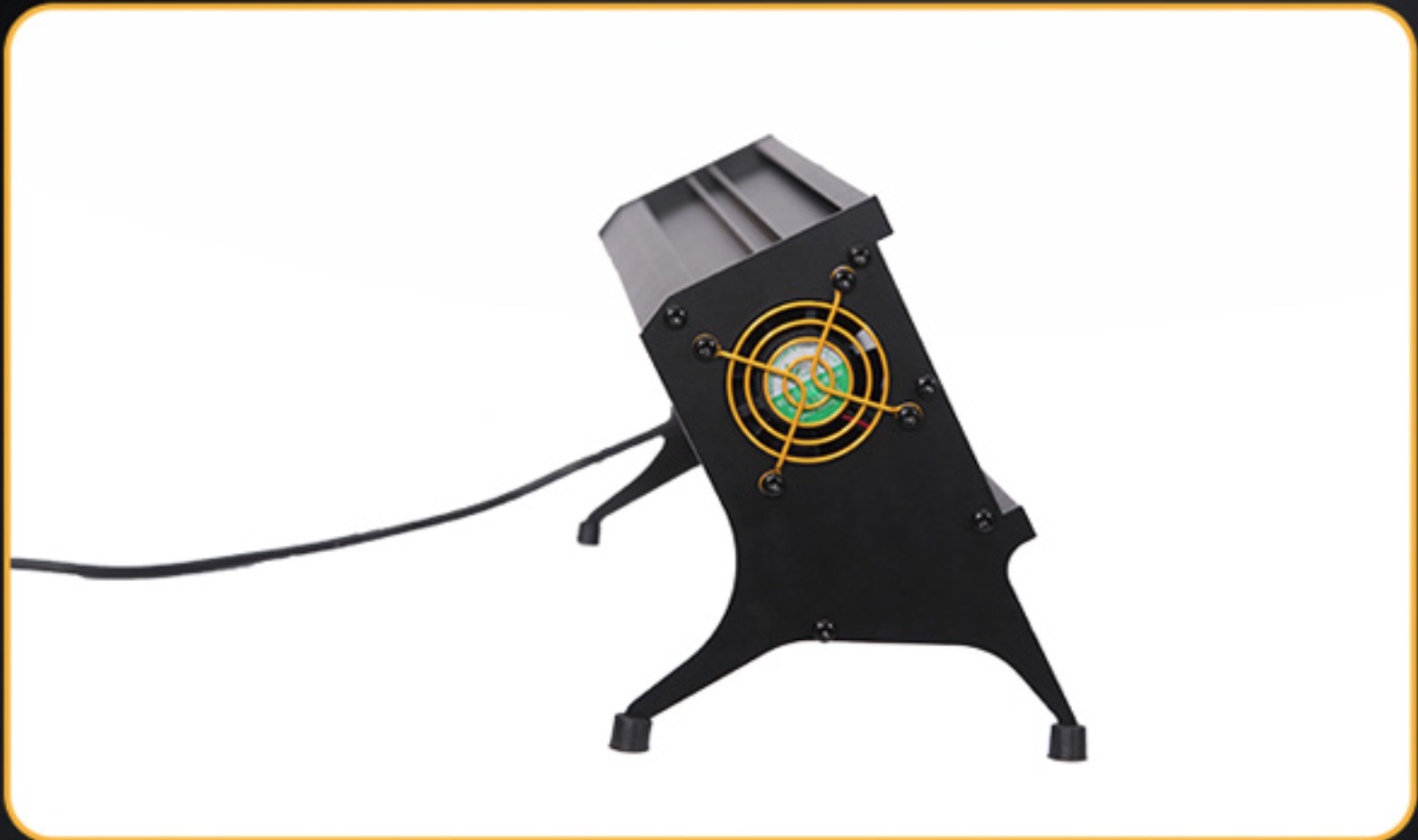

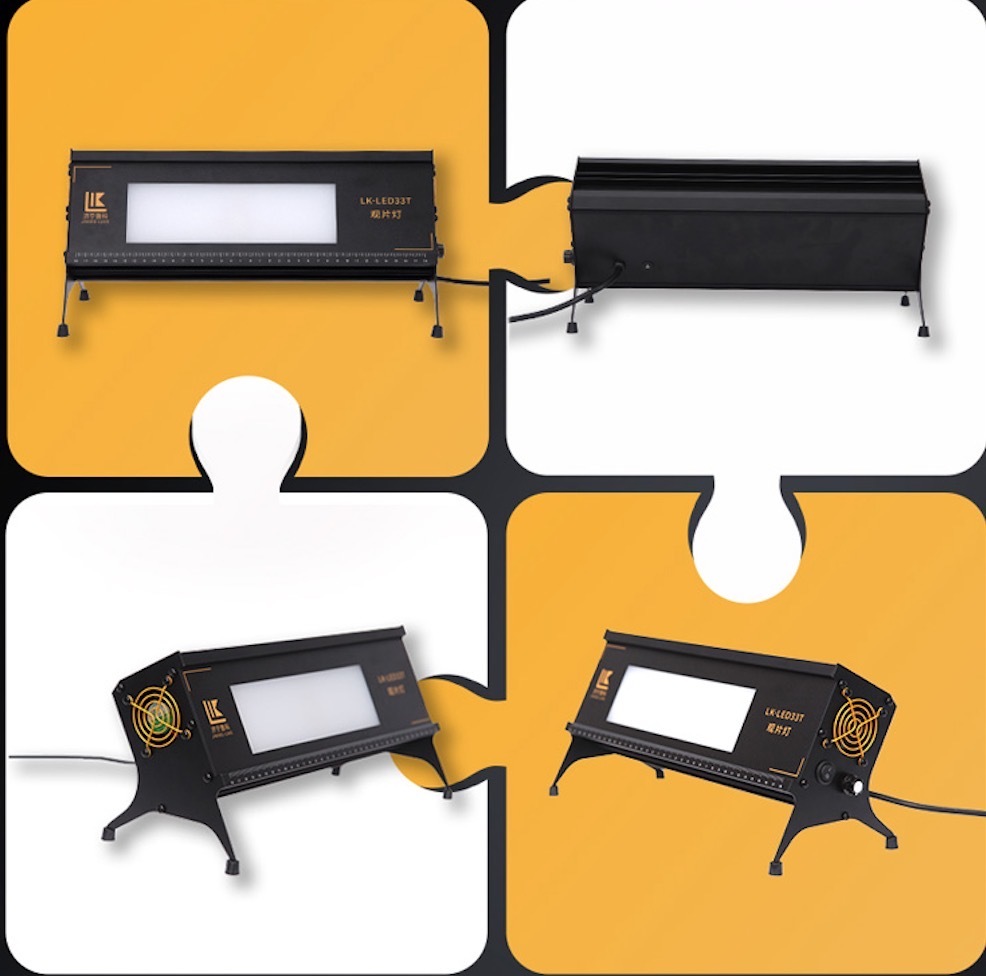

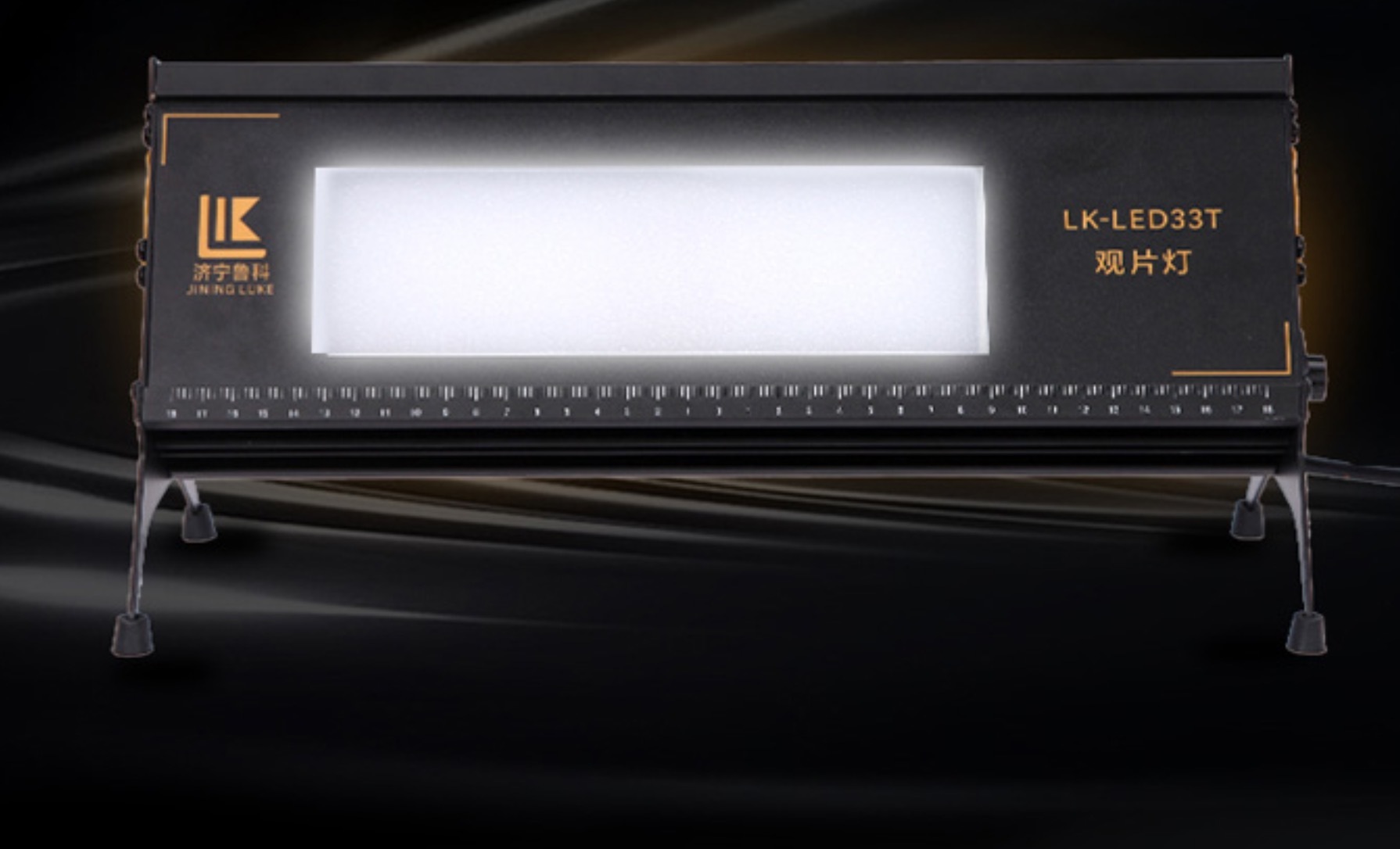

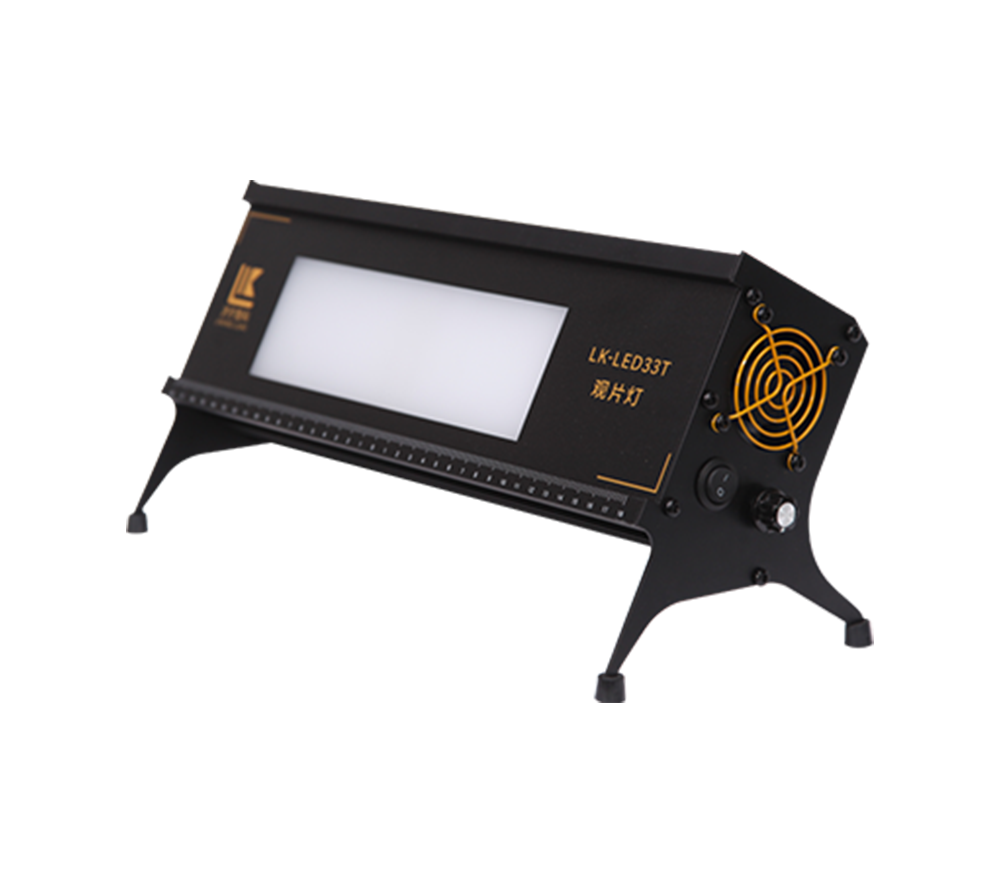

China Manufacturer Factory Price NDT Industrial X-ray Film Viewer

China Manufacturer Factory Price  NDT  Industrial X-ray Film Viewer

Features
1. Tabletop film viewing light, suitable for indoor film review.
2. Multi-level digital dimming function to meet the needs of users viewing films of varying darkness.
3. Adjustable viewing area with light zone adjustment buttons, allowing adjustment according to film size without the need for a shading panel.
4. LEDs are rationally distributed for uniform illumination.
5. Cold light source design for longer life, no film damage, and reduced eye irritation.
6. Foot switch for easy operation.
7. Aluminum alloy housing with unique groove design for excellent heat dissipation.
8. Imported optical diffuser window for excellent light transmittance, exceeding 92%, ensuring more even illumination.

Technical Parameters
1. Brightness: 130,000 cd/m2;
2. Window size: 220mm x 65mm;
3. Power supply voltage: AC 220V (±10%), 50Hz;
4. Power consumption: 72W;
5. Dimensions: 390mm x 140mm x 167mm;
6. Weight: 2.5kg.

Included:
1. Film viewing lamp (1);
2. Foot switch (1);
3. Magnifying glass (1);
4. Light shield (1);
5. Operation manual, certificate of conformity, and warranty card (1);
6. Aluminum alloy case (1).
